Product Components & Options
Secure, Guard & Protect with Solutions from SpaceGuard
SpaceGuard provides a diverse selection of premium solutions designed to safeguard your valuable assets. Our top-quality safety products cater to various industries, including manufacturing, healthcare, and government facilities.
We prioritize the protection of your equipment, inventory, and personnel, recognizing the significance of mitigating potential risks. With our products constructed from high-grade materials, they are engineered to endure even the harshest environments. Discover our extensive range of products today and enjoy the reassurance that comes with a secure space.
Mesh Types & Panel Options
Mesh Types & Panel Options
Learn MoreDoor Opening/Closing Options
Door Opening/Closing Options
Learn MorePosts
Posts
Learn MoreFinishes
Finishes
Learn MoreDoor/Gate Styles
Door/Gate Styles
Learn MoreLocker Options
Locker Options
Learn MoreDoor Hardware
Door Hardware
Learn MoreAdditional Product Options
Additional Product Options
Learn MoreMesh Types & Panel Options
10-gauge, 2” x 2” Welded Wire
Standard BeastWire® Panel
8-gauge, 1 ¼” x 4” Welded Wire
Standard RageWire® Panel
10-gauge, 1 ½” Diamond Woven Wire
Standard FordLogan Panel
6-gauge, 2” x 2” Welded Wire
10-gauge, ½” x ½” Woven Wire
10-gauge, 1” x 1” Woven Wire
Expanded Metal
16-gauge Sheet Metal
Welded Wire Mesh
BeastWire® Mesh panels consist of wire mesh or steel infill material securely welded into a 1¼” x ⅛” thick angle frame. They are available in one-foot increments up to 10′ wide and 5′ high and can be installed upright thanks to BeastWire®’s universal hole pattern.

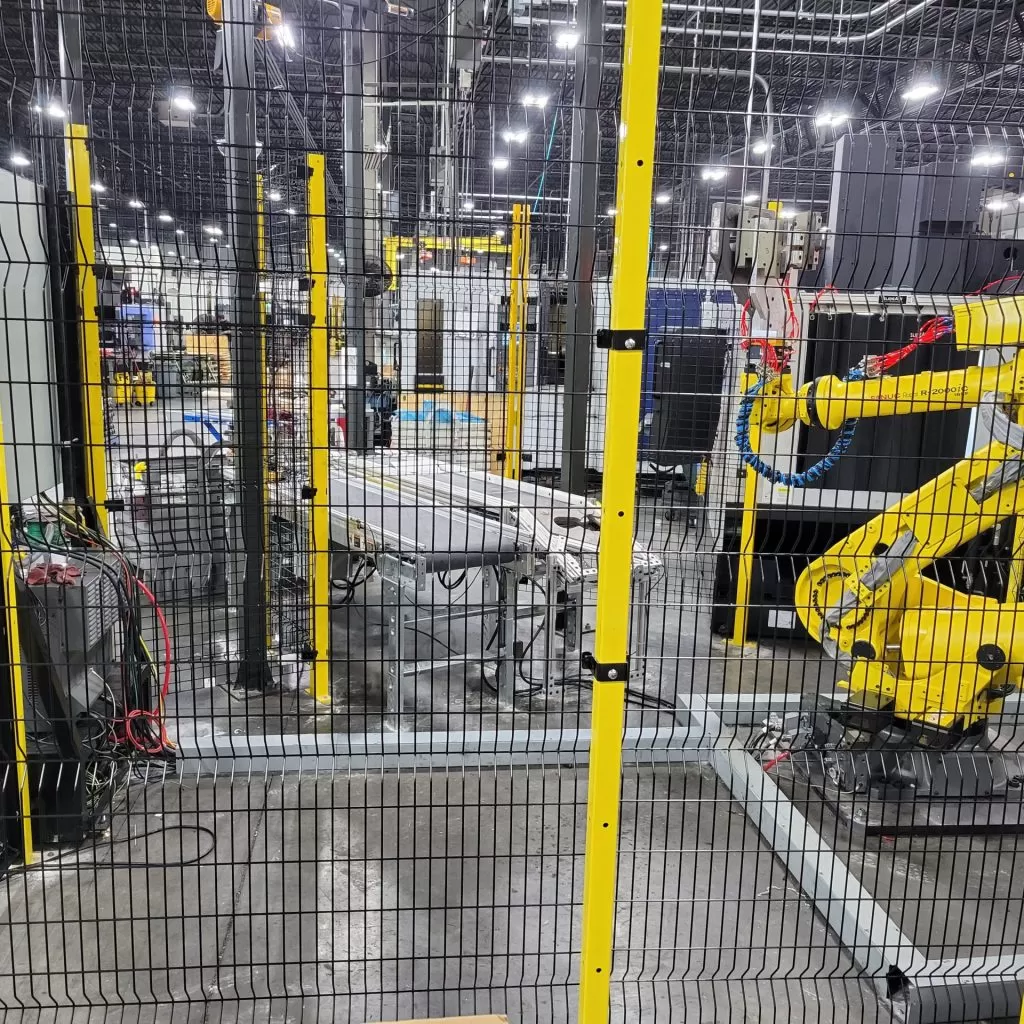

RageWire® panels are frameless and made of 8-gauge welded wire mesh with a 1¼” x 4” opening. The V-bend design not only enhances strength and rigidity, but functions as a built-in recessed cable management cavity. Standard sizes include widths of 5′ and heights of 6′, 7′, and 8′.
Woven Wire Mesh

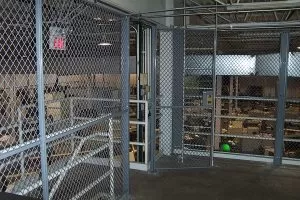

FordLogan panels offer sturdy construction with 10-gauge UNI-MESH™ 1½” diamond pattern wire mesh securely clinched into frames. ‘C’ type channels form the vertical (1¼″ x ⅝″) and horizontal (1″ x ½″) frame members, connected with mortise and tenon joints. Slotted holes allow for easy mounting. Stocked in heights of 7′, 8′, and 10′, and widths from 1′ to 5′.
Posts
BeastWire® Posts
RageWire® Posts
FordLogan Posts
BeastWire® Posts
- Constructed from 14-gauge 2″ square tube posts.
- Standard heights range from 7′ 2″ to 12′ 2″, customizable for intermediate heights.
- Universal post design with 7/16” diameter holes on all sides for easy installation.
- Various base plate sizes available, punched to accommodate ⅜” diameter anchors.
- Plastic post cap and dome plugs for a polished finish.

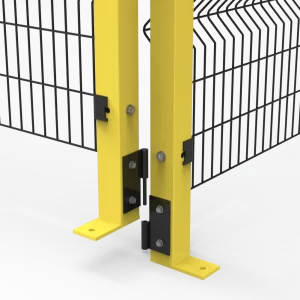

RageWire® Posts
|  |  |
FordLogan Posts
- Corner Post: 1¼” x 1¼” x ⅛” hot rolled angle with slotted holes.
- Adjustable Corner Post: Features four 3” x 3” butt hinges for flexibility.
- Line/Stiffener Post: 3½” x 1¼” – 10-gauge with 4” x 7” base plates.
- Three Way Post: U-shaped post punched to accept ⅜” diameter anchor on a 1¼” x 2” base plate.
Door/Gate Styles
Welded Wire Doors - BeastWire® & RageWire®
Hinged Doors
Sliding Doors
Hinged Doors
BeastWire® and RageWire® offer swing doors, ideal for regular personnel access. These doors are available in 3′ and 4′ widths, 7′ in height, for quick shipment. Benefits include:
|  |

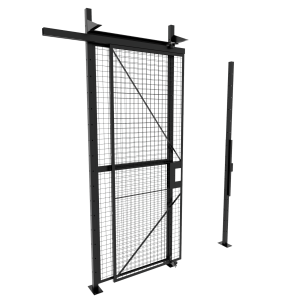

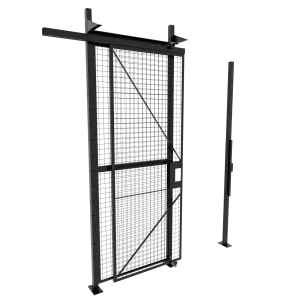

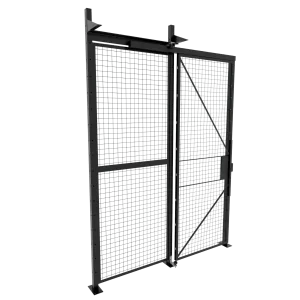

Sliding Doors
BeastWire® and RageWire® offer slide gates when aisleways are limited/obstructed or when openings larger than 4’ are required. Slide gates come in kit form, including essential components:
|  |
Woven WIre Doors - FordLogan
Hinged Doors
Sliding Doors

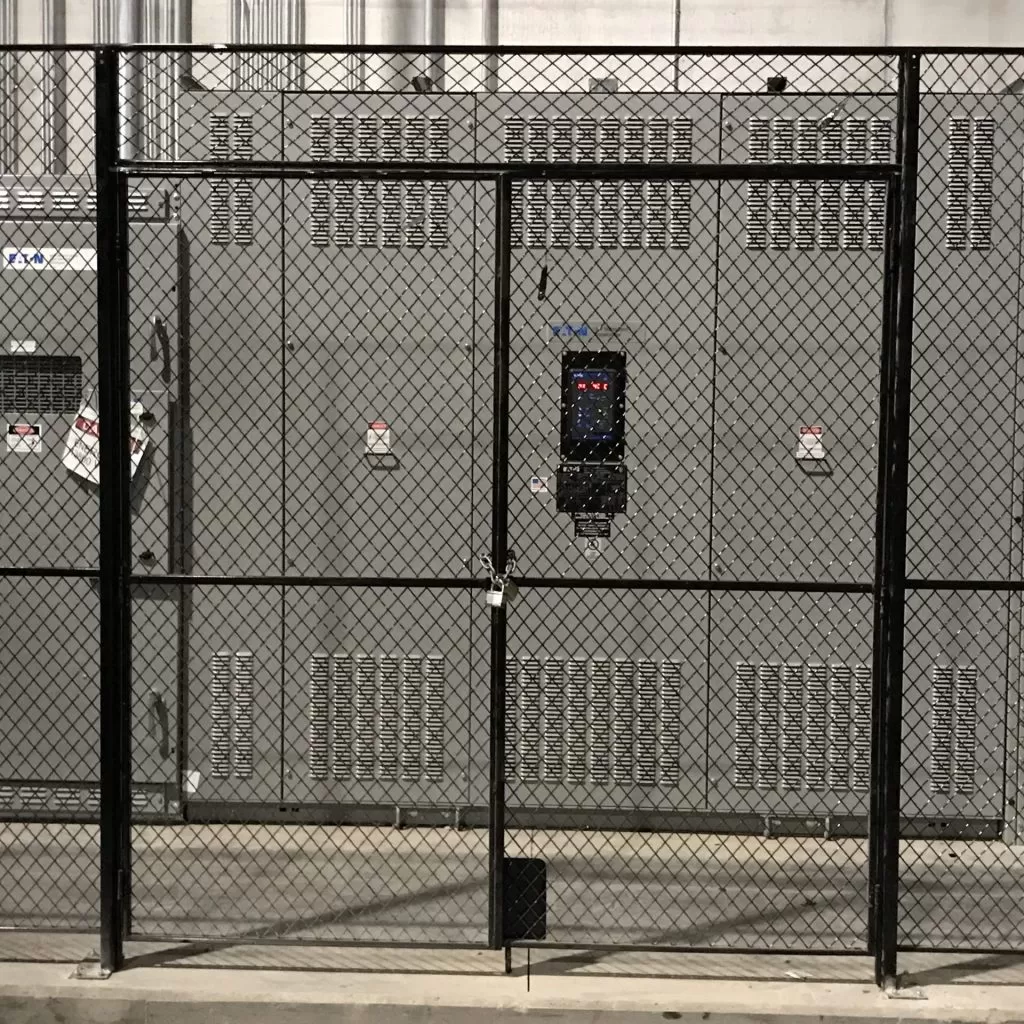

Hinged Doors
FordLogan’s hinged doors offer flexibility, hinging to the left or right, and swinging either in or out. Features include:
|  |
Sliding Doors
FordLogan provides secure and versatile sliding doors, mountable either inside or outside wire partitions. These doors feature a 1 ¼” x ⅛” flat steel bar cover on all sides and come equipped with:
|  |
Door Hardware
Mortise Lock
Standard
Padlock Hasp
Standard
Electric Strike
Panic Bar
Westinghouse RTS Series Lock
Lockey 2500
Marks USA 170
Door Opening/Closing Options

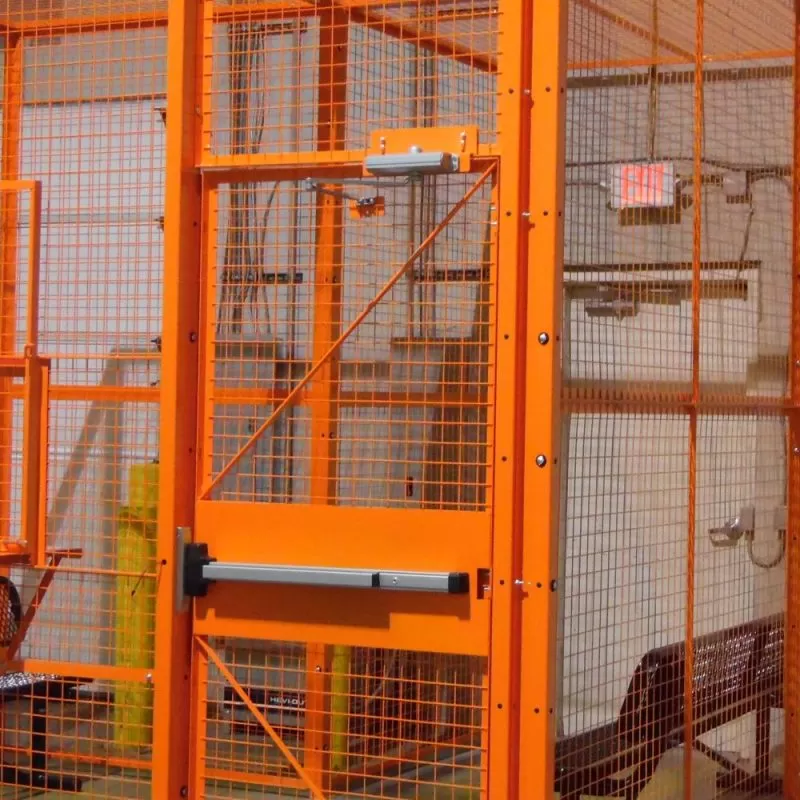

Hinged Hydraulic Door Closer
Hydraulic closers are available for hinge doors and easily installed using our pre-drilled mounting bracket.

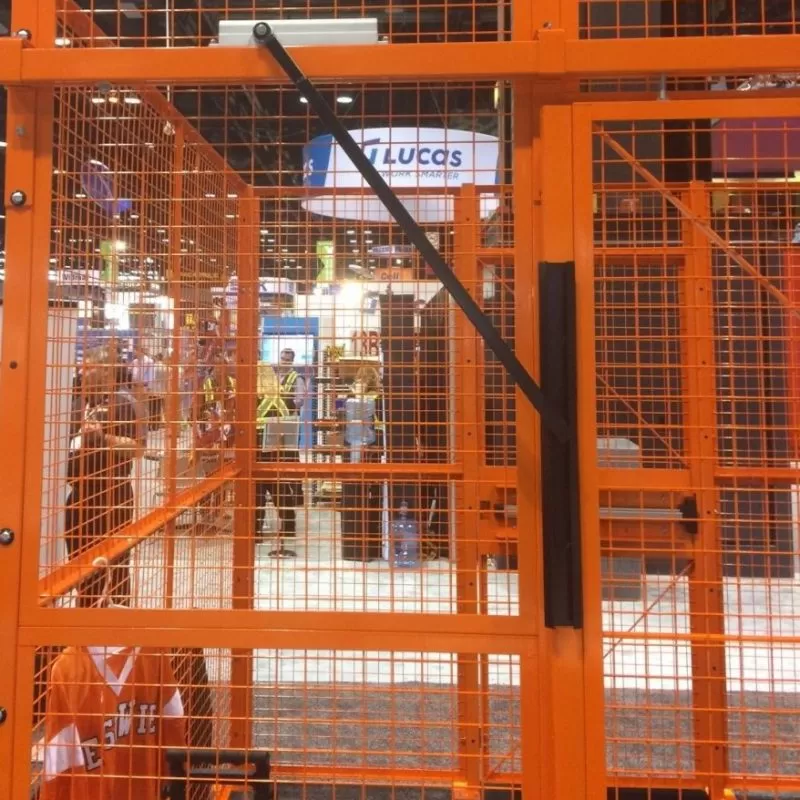

Slide Door Hydraulic Closer

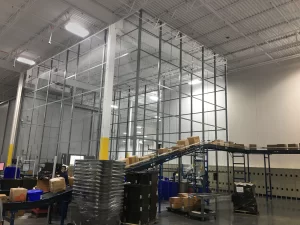

These closers are mounted to the track and feature an arm that rolls in a guide channel on the back of the door, providing a smooth and controlled closing motion. They offer a superior alternative to gravity-dependent track setups, especially for security-conscious applications like DEA-compliant Pharmaceutical Cages, while remaining cost-effective.

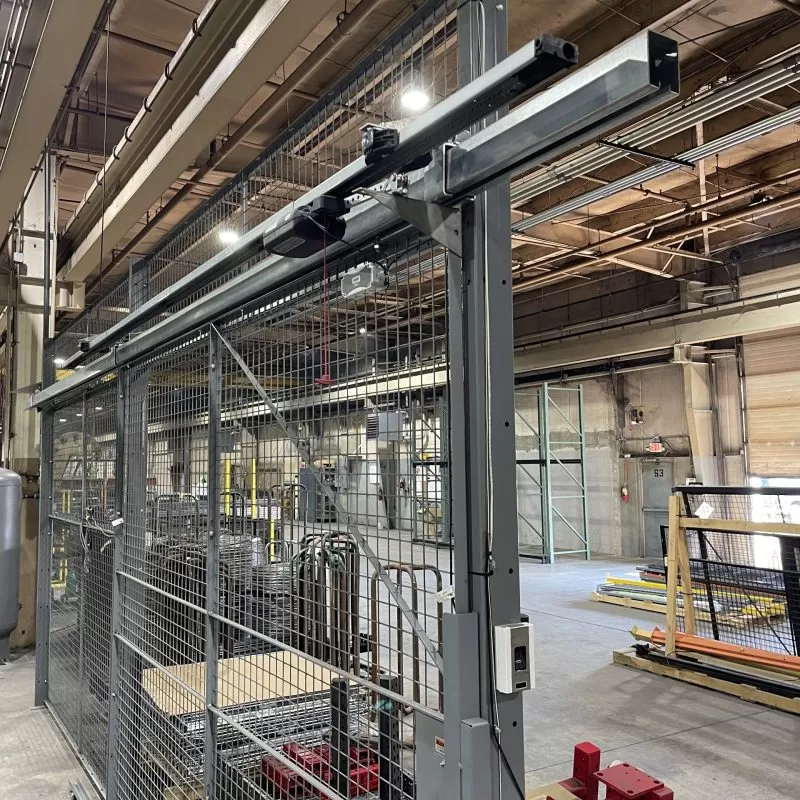

Automated Slide Door Closer
BeastWire® Mesh offers advanced automated slide gate closers, surpassing traditional fence gate operators. Our operators are mounted above the door on the track, saving valuable space and reducing the risk of being damaged by forklift traffic. With a powerful motor and only one moving part, our industrial-strength closers are easy to install and adjust. They operate quietly and require minimal maintenance.
Our automated closers provide additional features such as delayed closing for safe passage of materials and personnel, light barriers, and a pressure-sensitive return for enhanced safety. Each closer comes with one wall-mounted station and two handheld remotes that can be conveniently attached to a forklift or other equipment.
Finishes
SpaceGuard Products is proud to lead with high-quality powder coatings from the Sherwin Williams product family. In addition to the in-stock colors listed below, we are able to match any RAL color.
Standard finishes
BeastWire® - BeastBlack or Gray Panels & Posts
RageWire® - BeastBlack Panels & Safety Yellow Posts
FordLogan - BeastBlack or Gray Panels & Posts

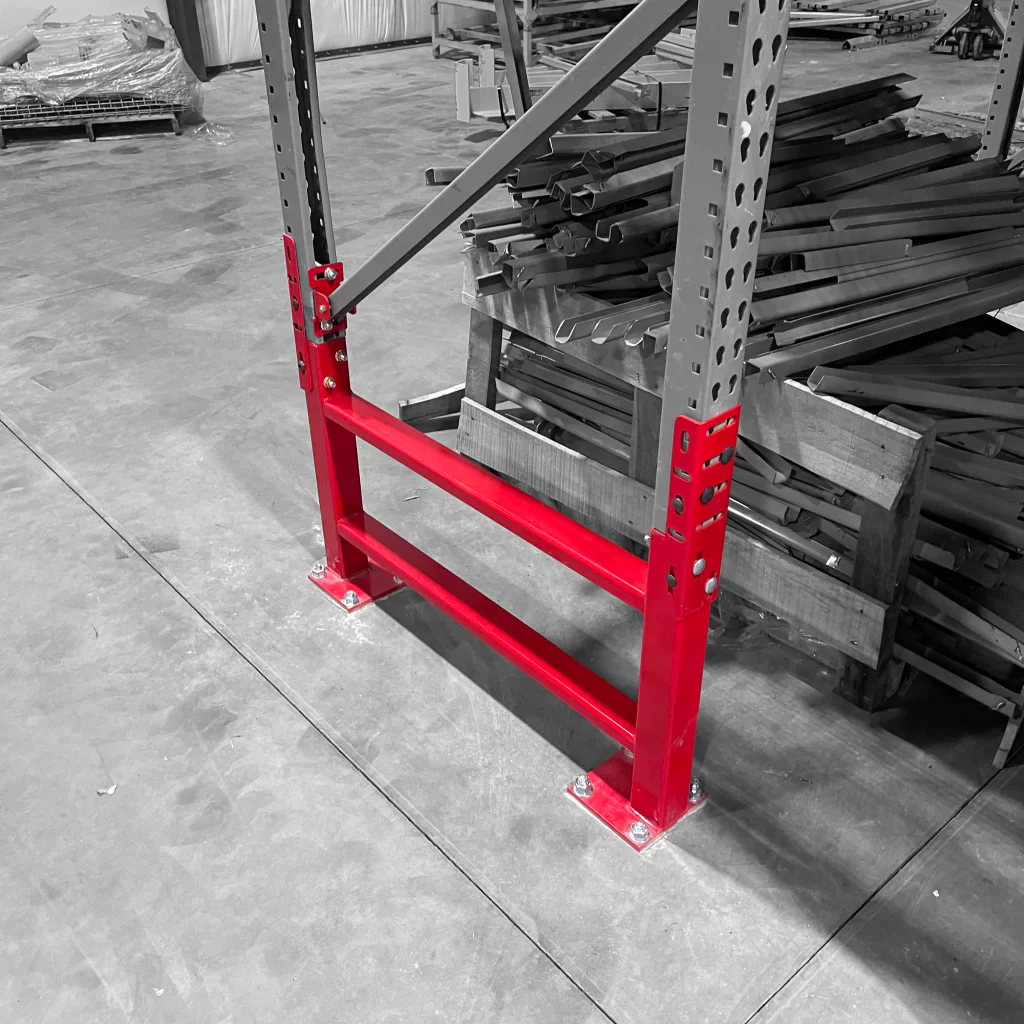

Centurion™ - Red Baron
In-Stock Colors
Please note that the colors shown here are approximations. Please contact your Customer Service Representative to request paint samples.
Additional Product Options
Growth Plates
Service Windows
Wall Connection Kits
Posts Extensions
Growth Plates
Growth plates are versatile components in BeastWire® systems. These 2″ wide steel channels effectively fill gaps, offsetting 2″ of natural growth from square posts when attached to panels, posts, and ceiling panels. They also enhance security by filling the sweep space below panels and doors, and for high-security needs, they eliminate the sweep space.

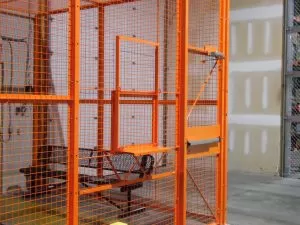

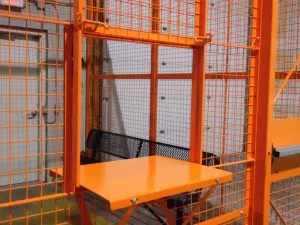

Service Windows

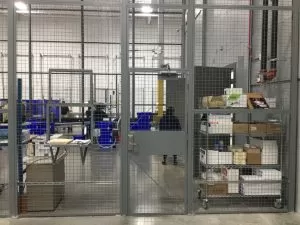

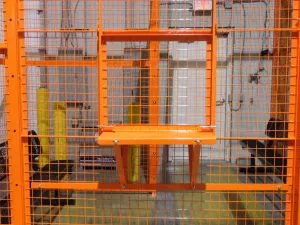

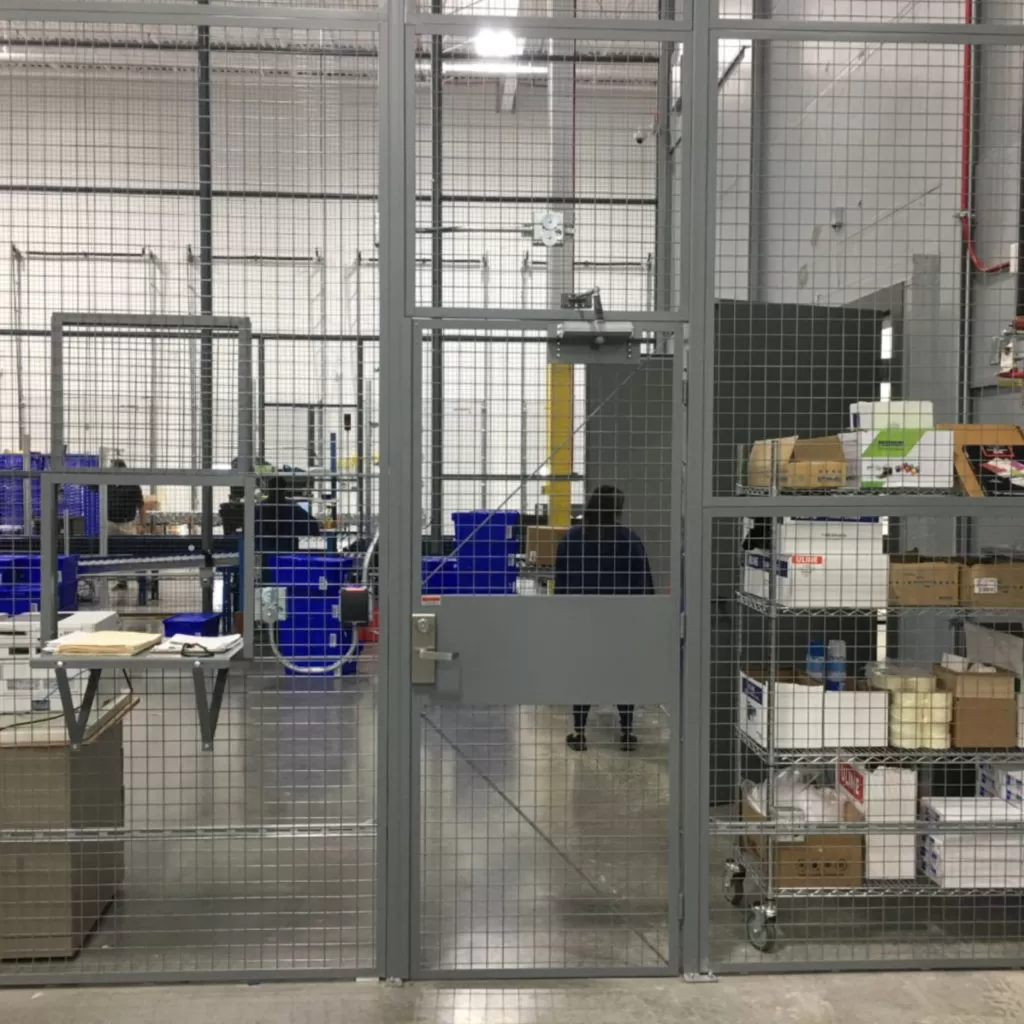

Service windows serve to enhance security within drivers’ cages and find application in tool cribs and parts rooms to facilitate the secure transfer of parts or valuable tools. Standard slide-up windows provide a 24” x 21 ½” high opening with an optional 12” deep 12-gauge sheet metal shelf (fold-down windows also available).
Wall Connection Kits
To connect to walls, BeastWire® commonly employs its wall connection kit, which includes four 1 ½” angle brackets and self-tap screws to secure the angle to the post. Please note that wall mounting hardware is not included and should be selected based on specific application requirements.
Posts Extensions
Post extensions mirror the posts except there is no built-in sweep space or base plate. The bottom hole begins at 6” from the end and continues every 12” on center. The post extension connects by using a 1 ¾” insert that connects the post above and below. Additional rigidity is achieved by bolting the top and bottom panels through the slotted holes in the panel frame.
Locker Options & Add-Ons

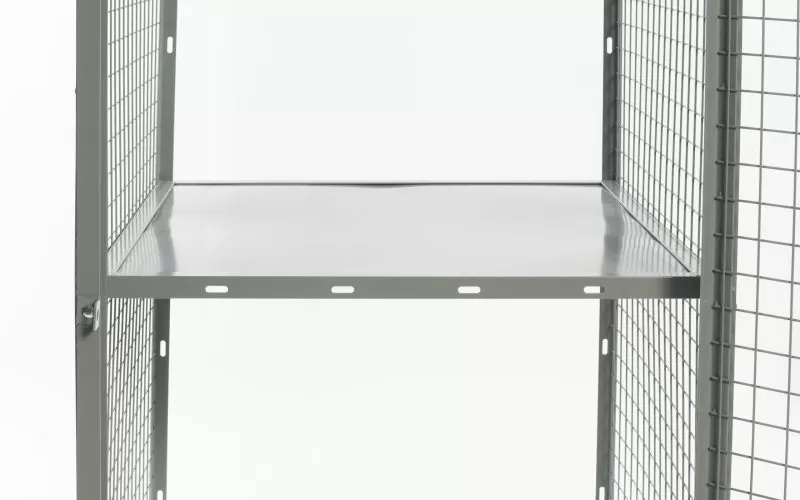

Shelves

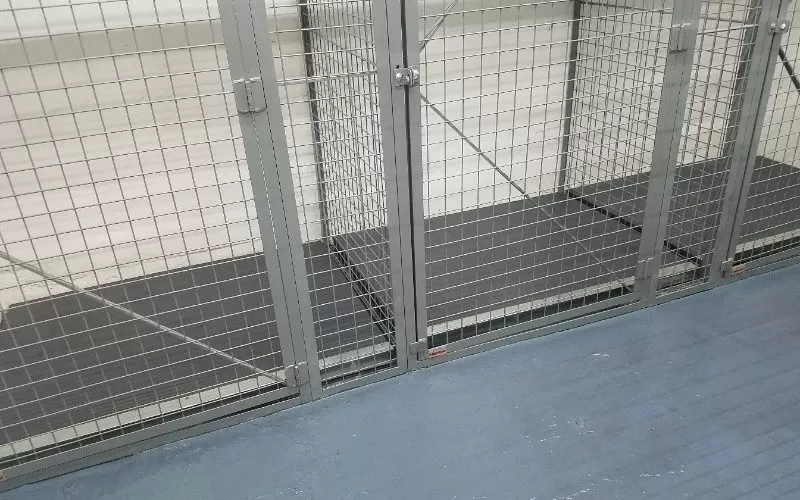

Our locker shelves fit seamlessly inside 3-wall starters and 2-wall adder configurations. They can be secured using our standard locker flats, offering bolt-through capability. These flats provide flexibility to set the shelf at the desired height. Alternatively, adjustable shelf clips are available for hanging options. We offer both full and half-depth shelves, versatile for various storage needs. These shelves can also double as a raised floor or base, and can be provided in solid sheet metal or other steel infill options upon request.
Back Panels
BeastWire® storage lockers come with solid or wire mesh backs. The standard 20-gauge galvanized sheet metal backs are designed to match the holes in the side wall panels. For “adder” units sharing common side walls, a 3” wide splice plate bridges the extra distance caused by the orientation of the side wall panel. Galvanized sheet metal backs increase the unit’s depth by ⅛” to ¼” (where a splice plate is present). BeastWire® Mesh panels can also serve as wire mesh backs, connecting in the same way as doors and wall panels. Note that this increases the unit’s depth by 1 ½”.
Ceilings/Tops

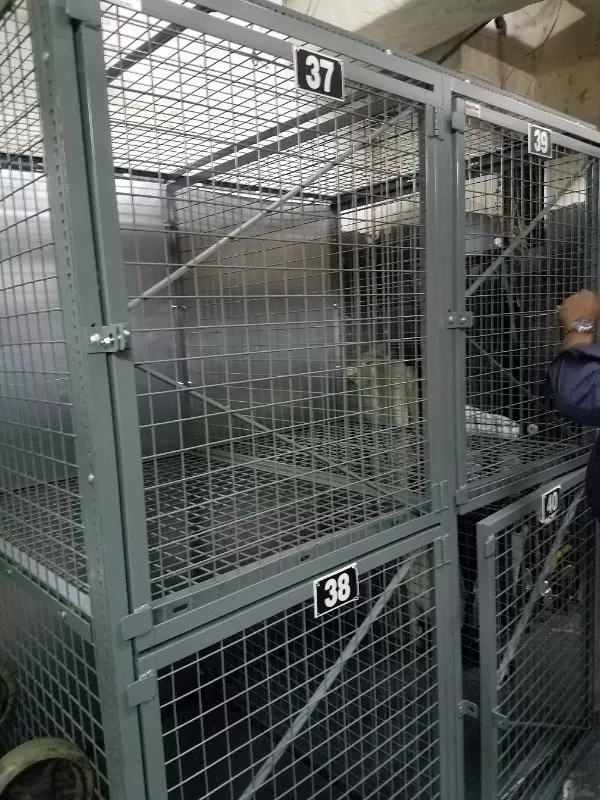

BeastWire® Mesh panels are suitable for creating a lid or ceiling above the storage locker. A 1 ½” 14-gauge perforated angle connects the ceiling, and panels are often shared to cover multiple adjacent units, saving project costs. Ceilings add 1 ½” to the overall height.
Portable Lockers
Our BeastWire® lockers can be configured for portability. Available with casters or fork pockets, they come in various sizes and configurations. These portable storage carts have found applications in pharmaceutical warehouses, retail stores, military installations, construction sites, and more. The solid construction ensures secure transport of valuable merchandise, tools, and assets without frequent cart replacement.

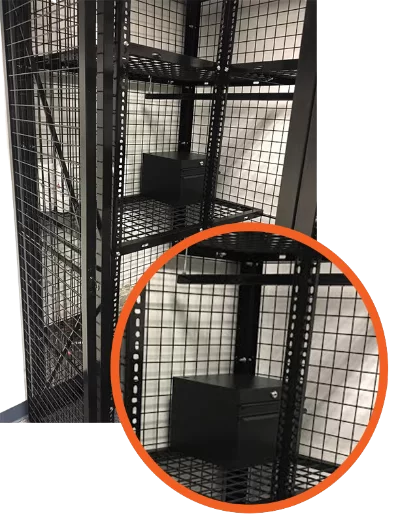

Additional Locker Options & Add Ons
- Leveling Legs
- Coat Rods and Hooks
- Sliding Doors
